Commercial Awnings & Winter Vestibules in NYC: DOB Encroachment Permits & Canvas Care

Navigate NYC Department of Buildings (DOB) sidewalk encroachment permits, winter vestibule seasonal dates, Sunbrella marine fabric specs, and commercial awning engineering.

Custom black Sunbrella commercial storefront awning with crisp white branding in Soho NYC

For New York City restaurants, cafes, and luxury retail storefronts, exterior architectural awnings and winter vestibule enclosures serve dual purposes: they protect patrons from Northeast weather while expanding visible branding directly over the sidewalk. However, installing structures that project over public streets requires strict adherence to NYC DOB sidewalk encroachment regulations and fire safety codes.

1. NYC DOB Commercial Awning Regulations & Clearances

Under NYC Administrative Code Section 28-105.4 and Building Code Chapter 32, commercial awnings must maintain specific structural parameters:

  • Minimum Headroom Clearance: The lowest point of an awning valance or rigid frame must be at least 8 feet above the sidewalk.
  • Maximum Sidewalk Projection: In commercial zoning districts, standard fixed awnings can project up to half the sidewalk width or a maximum of 10 feet.
  • NFPA 701 Fire Certification: All woven awning fabrics must carry flame-retardant compliance certification recognized by the FDNY.
Custom commercial restaurant winter vestibule enclosure with clear heavy-duty vinyl windows
Figure 2: Winter vestibule enclosures reduce interior HVAC heating loss by up to 35% during harsh Northeast winter months.

2. Winter Vestibules: Permitted Seasonal Dates & HVAC ROI

Custom winter vestibules provide a thermal airlock that prevents freezing wind from chilling diners and cuts heating utility bills by up to 35%:

  1. Permitted Operating Window: NYC DOB permits temporary winter vestibules on public sidewalks strictly between November 1st and April 15th.
  2. Maximum Encroachment: Enclosures cannot project more than 4 feet beyond the building line and must preserve an unobstructed 8-foot pedestrian clear path.
  3. Fire Egress Standards: Vestibule doors must swing outward in the direction of emergency egress.

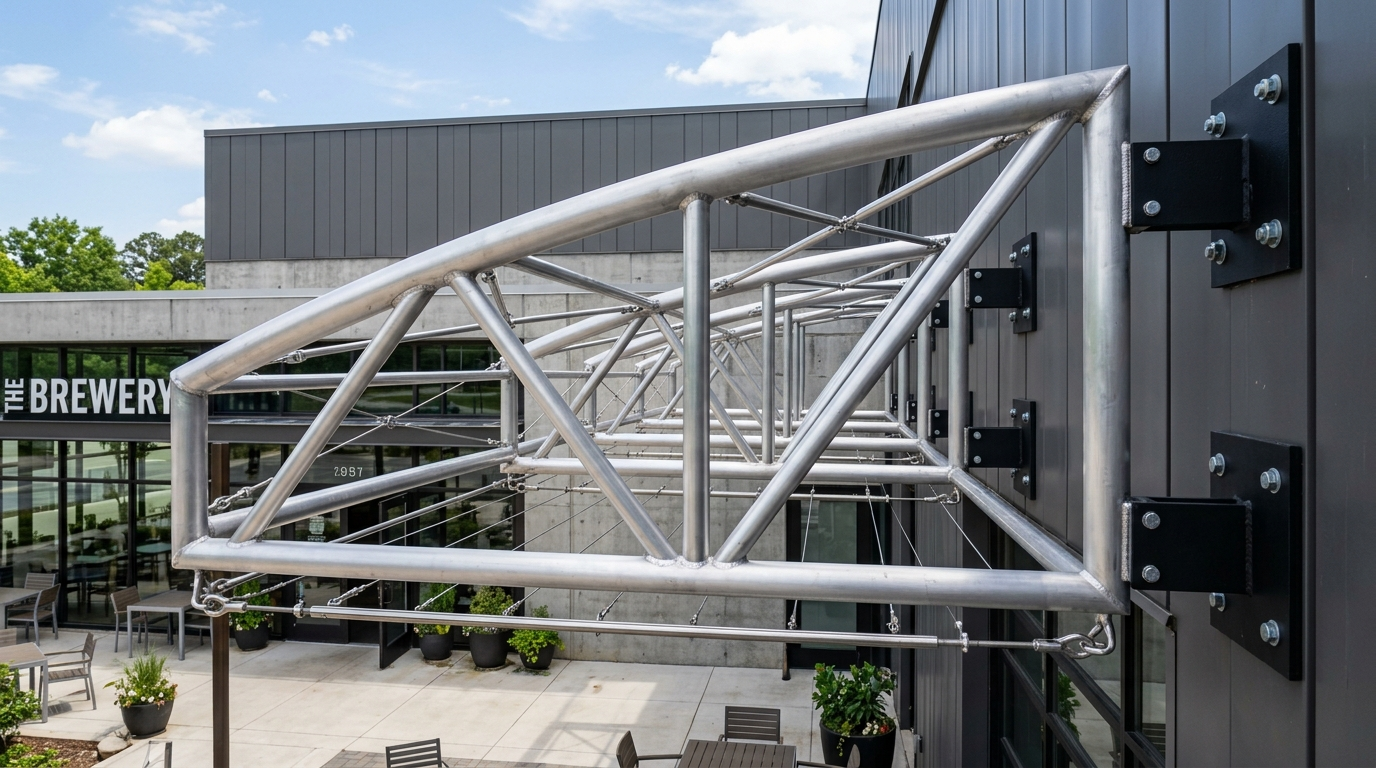

Structural welded tubular aluminum awning truss frame with tension lace bars
Figure 3: All-welded 6063-T6 tubular aluminum frames provide lifelong corrosion resistance against NYC road salts and acid rain.

3. Welded Aluminum Frame Engineering vs. Steel

Signs River fabricates commercial awning frames using heavy-gauge 6063-T6 tubular aluminum with full MIG/TIG continuous welds. Unlike cheap steel conduit that rusts within two winters, structural aluminum provides a permanent, corrosion-free framework capable of supporting 30 lbs/sq.ft snow loads.

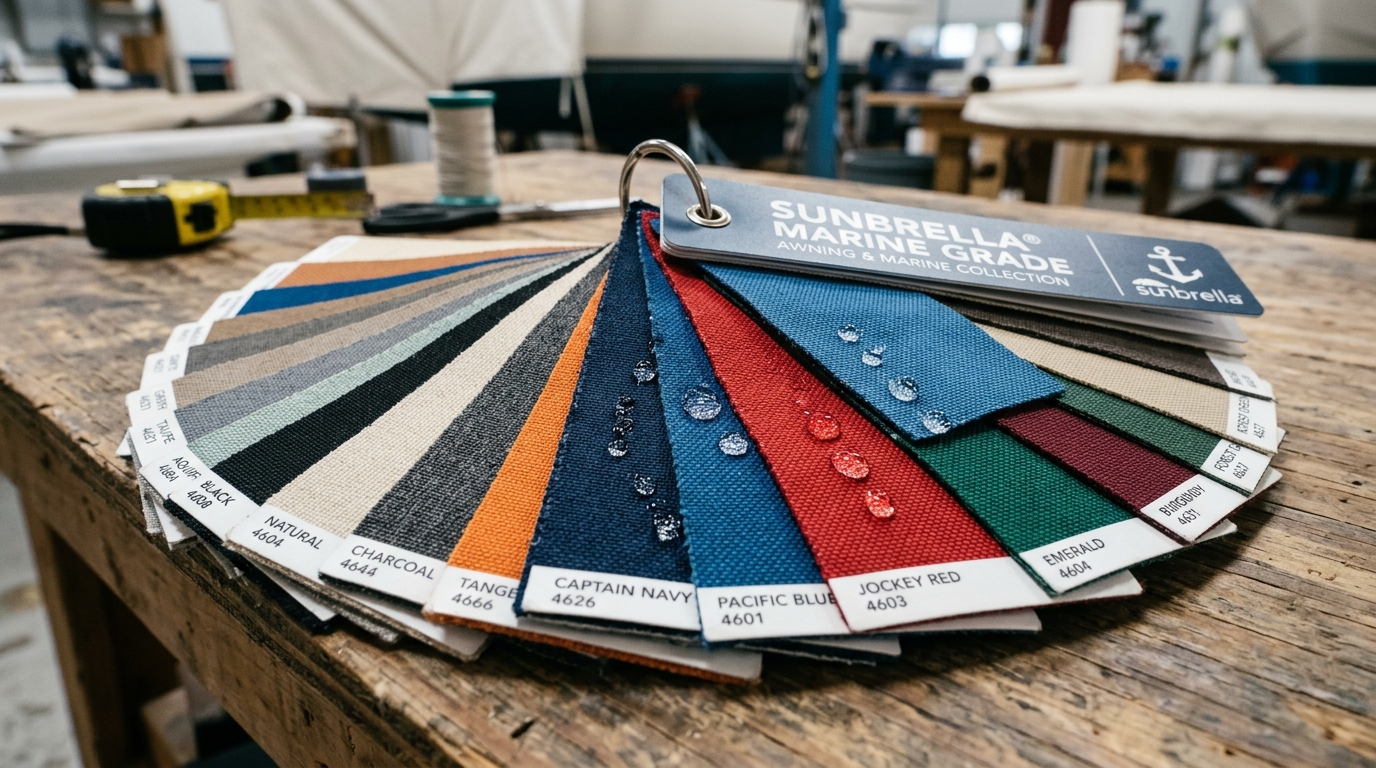

Marine grade Sunbrella awning fabric swatch fan displaying rich woven colors
Figure 4: 100% solution-dyed acrylic Sunbrella fabric maintains color vibrancy and carries certified NFPA 701 fire-retardant compliance.

4. Sunbrella Fabric Science & Maintenance

We utilize 100% solution-dyed acrylic Sunbrella Marine Plus fabrics. Because color pigments are infused directly into the liquid polymer before fiber extrusion, the fabric is impervious to UV fading, chlorine, and acid rain.

FeatureSunbrella Marine CanvasStandard Vinyl Fabric
Breathability & MildewHighly breathable (Zero trapped condensation)Non-breathable (Prone to underside mold)
Cold-Crack ResistanceFlexible to -30°FCracks below 20°F
Expected Lifespan10–12+ Years4–6 Years
Upscale Manhattan restaurant exterior featuring matching fabric awning and illuminated blade sign
Figure 5: Cohesive architectural styling across awnings, projecting blade signage, and cafe barriers elevates outdoor hospitality curb appeal.

5. Summary & Installation Support

A well-maintained commercial awning combined with seasonal winter enclosures transforms your storefront into an inviting, premium destination. Signs River coordinates 3D design proofing, DOB sidewalk filings, custom fabric branding, and coordinated installation.

Explore our exterior solutions: custom commercial storefront awnings, seasonal winter vestibules, motorized retractable awnings, and canvas awning recovery services. Call (660) 851-6292 or request a free quote today.
