What Is Dibond? The Architect’s Guide to Aluminum Composite Material (ACM) for Exterior Signage

Comprehensive technical guide to Dibond aluminum composite material (ACM). Learn about core density, CNC V-grooving, route-and-return fabrication, and exterior weatherability.

High-precision CNC router bit milling architectural ACM Dibond panel with 90-degree V-groove

In modern architectural signage and commercial facade cladding, Dibond (and Aluminum Composite Material / ACM) has largely replaced traditional heavy aluminum sheets, plywood (MDO), and basic plastics. Offering extreme flatness, rigid structural integrity, and lightweight handling, Dibond is the premier substrate for durable NYC exterior signs.

1. Material Anatomy: The ACM Sandwich Structure

Dibond is engineered as a three-layer composite material: two exterior sheets of 0.3mm (0.012″) corrosion-resistant aluminum thermally bonded to a solid, high-density polyethylene (PE) or mineral-filled fire-retardant (FR) core. The standard overall sheet thickness is 3mm (approx. 1/8″) or 4mm.

Key Engineering Advantages:

  • 50% Lighter Than Sheet Aluminum: Delivers identical rigidity to solid aluminum plate at half the physical weight.
  • Zero Thermal Oil-Canning: Unlike single-sheet metals that warp and buckle during extreme summer-to-winter temperature swings in NYC, ACM remains dead flat.
  • Class A Fire Rating Options: Fire-resistant mineral cores meet strict NYC DOB building cladding and high-rise canopy requirements.

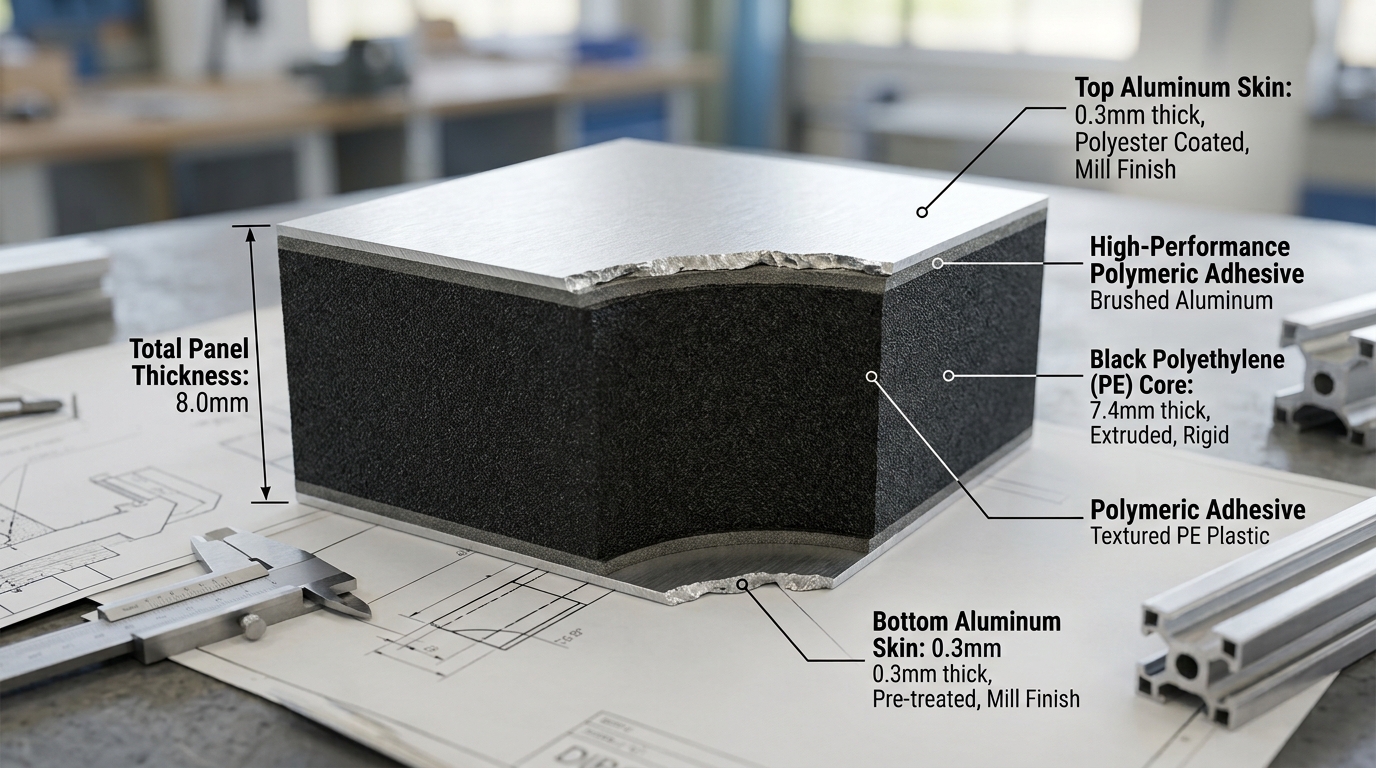

Photorealistic 3D cross-section diagram of Dibond panel showing dual aluminum skins and core
Figure 2: The composite sandwich structure (0.012″ aluminum skins + solid polyethylene core) delivers 50% lighter weight than solid sheet aluminum with equal rigidity.

2. Route-and-Return Fabrication & 3D Pan Forming

One of Dibond’s most powerful fabrication advantages is its ability to be folded into rigid 3D sign pans, architectural cassettes, and column wraps using CNC V-grooving (Route and Return).

  1. CNC V-Groove Milling: A 90-degree or 135-degree router bit cuts through the top aluminum skin and core, leaving the bottom 0.3mm aluminum skin intact.
  2. Clean Hand Folding: The panel is cleanly bent along the groove, creating crisp, seamless 90-degree corners with no visible exterior fasteners.
  3. Corner Riveting & Welded Tabs: Structural corner angles secure the folded pan into an ultra-rigid architectural cassette.

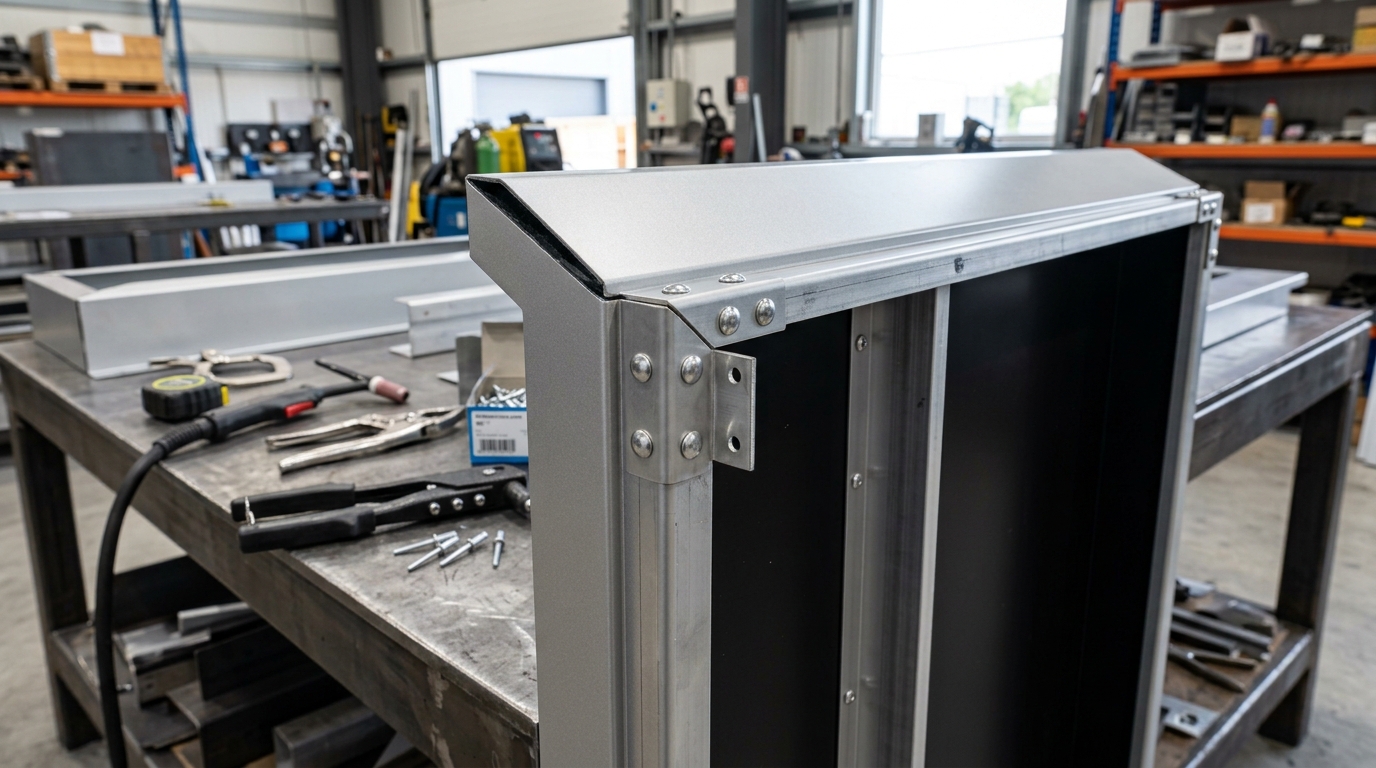

Architectural ACM cassette panel folded with route-and-return fabrication showing corner tabs
Figure 3: Route-and-return fabrication eliminates visible exterior fasteners, creating clean monolithic architectural sign pans and column covers.

3. Technical Material Comparison

SubstrateWeight (4×8 Sheet)Outdoor LifespanRigidity & Flatness
3mm Dibond ACM~24 lbs15+ YearsExceptional (Zero warping)
1/8″ Solid Aluminum Sheet~45 lbs20+ YearsProne to thermal expansion warp
1/2″ MDO Plywood~65 lbs3–5 YearsSwells and delaminates from rain

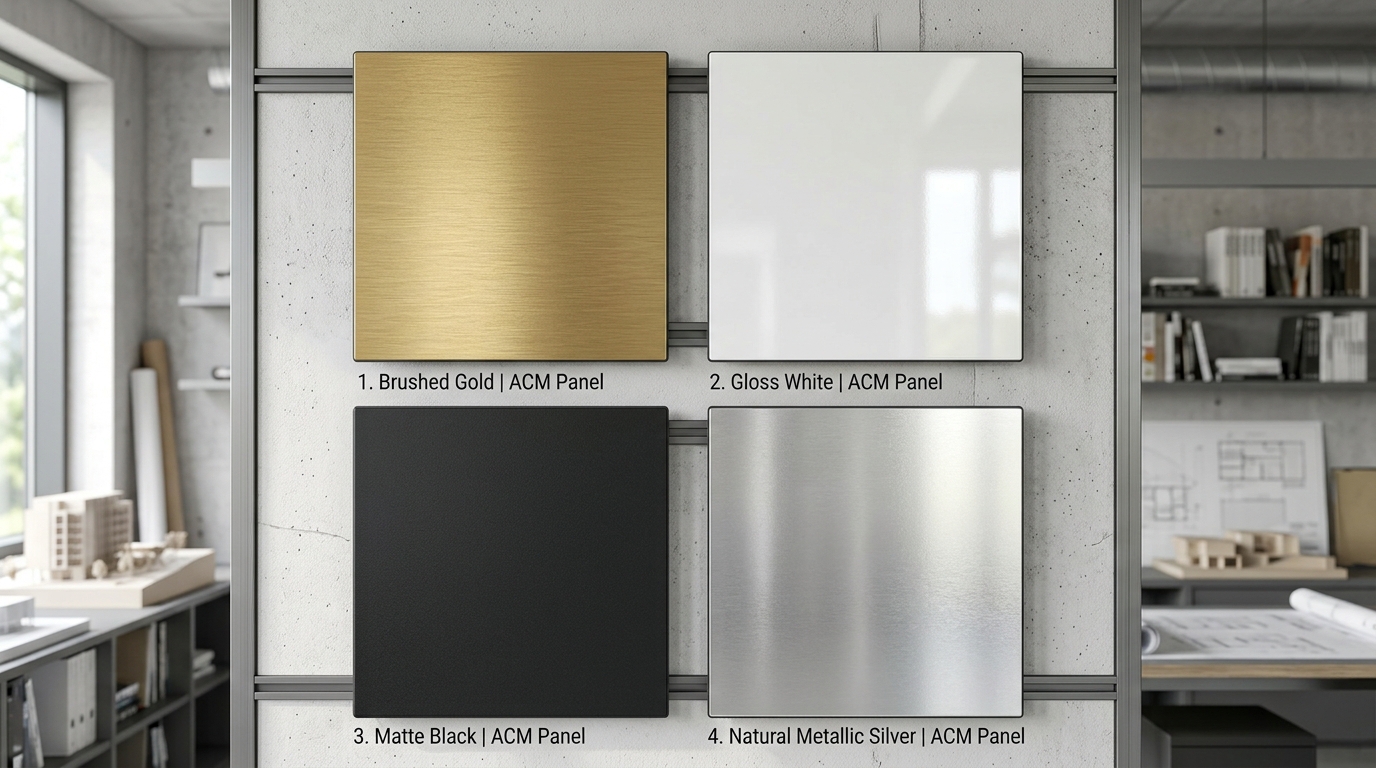

Material sample array of architectural ACM finishes including gold, white, black, and silver
Figure 4: Factory PVDF coil-coated finishes resist UV degradation, chemical pollutants, and temperature swings from -50°F to 180°F.

4. Surface Finishes & Direct UV Flatbed Printing

Dibond panels come factory coil-coated with premium fluoropolymer (PVDF) or polyester finishes including brushed silver, brushed gold, gloss white, matte black, and faux architectural woodgrain. High-resolution direct UV flatbed printers can print directly onto the aluminum skin with flexible UV-cured inks for photographic outdoor murals.

Modern commercial business park entrance monument sign clad in Dibond composite panels
Figure 5: Commercial pylon monuments and entrance architectural portals clad in Dibond provide decades of maintenance-free service life.

5. Summary: The Premier Outdoor Substrate

Whether you need commercial real estate site signboards, architectural monument cladding, channel letter backer panels, or parking garage directional signs, Dibond delivers unmatched longevity and aesthetic quality.

Explore our custom exterior solutions: illuminated 3D LED channel letters, heavy-duty sidewalk cafe barriers, custom flat metal signs, and photographic Duratrans backlit prints. Browse our dedicated Dibond ACM sign fabrication page or contact Signs River for a free quote.
